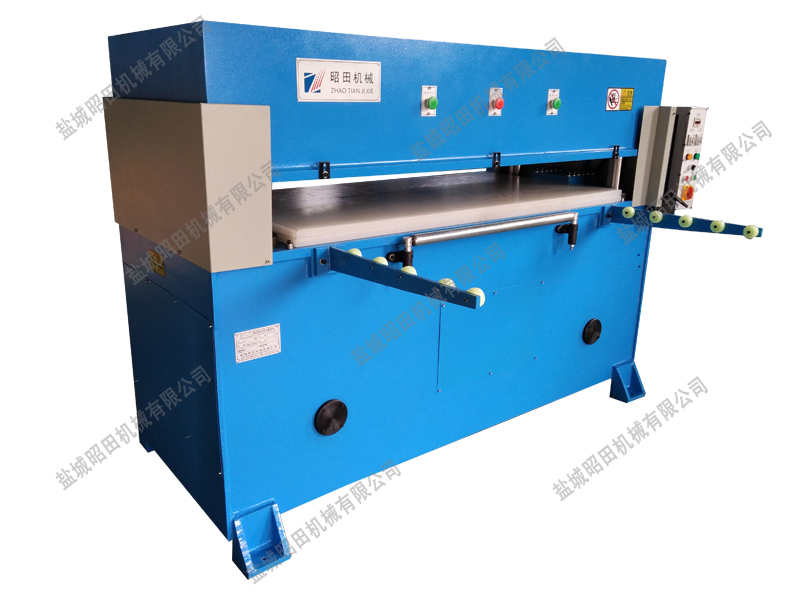

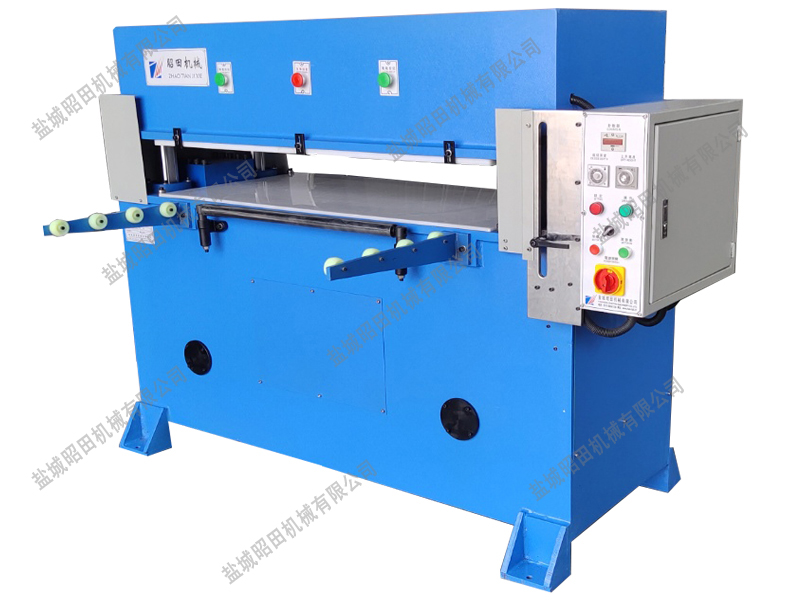

ZT-J 精密四柱式液压裁断机

发布时间:2020-09-13
详细介绍
Detailed introduction

产品性能特点:

  1、可多层冲切,有效提高工作效率与减少人工劳动力。
  2、30吨以上机器配置双油缸双连杆,150吨以上都是四油缸加六柱结构,双连杆自动平衡,持久采用,基本寿命在10年以上。
  3、设有自动润滑系统,无需劳动力加润滑油,有效提高冲切的精密度。
  4、机械配有红外线光电安全保护装置(安全光栅)与紧急刹车装置,使操作更安全
  5、操作简单并且省力,故障少、冲切力超强(随吨数而变化)裁切区域广。
  6、两级加压,上工作板下压至裁刀时转柔性切断,使裁料层次之间没有尺寸误差。
  7、主轴采用中央自动循环润滑系统,无人工疏忽打油而使机件损坏顾虑,提高机器耐用度。
  8、特有设定构造,配合裁断刀及裁断高度.使冲程调整简单、准确。
  9、配有双油缸、超强动力,噪音低。
  10、可配置自动送料装置,提高工业产品生产工作效率。
适用行业:
  本机适用于各种吸塑、海绵、EPE、珍珠棉、地毯、无纺布、汽车内饰、手套、箱包、拼图、EVA、PAC、PVS、塑料地板、汽车脚垫成型、汽车坐垫、足球、砂纸、抛光轮、抛光片、抛光盘、鞋面、鞋底、皮革、橡胶、化纤、硬纸、尼龙、帆布、无纺布、棉麻织品及各种非金属材料的一层或多层片材及卷材利用刀模裁断使之达到成型之目的。
注意事项:
  1、新机使用一年内建议更换一次液压油,请选用大品牌;
  2、机器运行时,严禁双手伸入裁断区域内;
  3、严禁超负载使用机器。
  4、不得超压使用机器;机器的安全防护装置不得拆除。
主要技术参数:
型号 ZT-J-350 ZT-J-400 ZT-J-500 ZT-J-600 ZT-J-800 ZT-J-1000 ZT-J-1500
最大裁断力(KN) 350 400 500 600 800 1000 1500
上压板至工作台距离 50-190 50-190 50-190 50-190 50-190 50-190 50-190
裁断区域(mm) 1250×600
1600×600
1250×600
1600×600
1250×800
1600×800
1250×900
1600×900
1250×900
1600×900
1600×900 1600×1000
主电机功率 2.2 3 4 5.5 7.5 7.5 11
机器重量(约)(KG) 2000
2300
2500
2700
3200
3500
3800
4200
5400
5800
700 8500

机器的具体参数、配置、价格、优惠信息请来电咨询!特殊规格要求可按要求定制。





Product performance Features:
1, can be multi-layer punching, effectively improve work efficiency and reduce labor.
2. The machine above 30 tons is equipped with double oil cylinder and double connecting rod, and the machine above 150 tons is a four-cylinder and six-column structure, with double connecting rod automatically balancing and lasting use, and the basic life is more than 10 years.
3, with an automatic lubrication system, no labor lubrication, effectively improve the precision of punching.
4. The machine is equipped with infrared photoelectric safety protection device (safety grating) and emergency brake device to make the operation safer.
5, the operation is simple and labor-saving, less fault, strong cutting force (with the tonnage changes) wide cutting area.
6. Two-stage pressure, when the upper working plate is pressed down to the cutting tool, it is turned to be flexible and cut off, so that there is no dimensional error between the cutting layers.
7. The main shaft adopts the central automatic circulation lubrication system, which can improve the durability of the machine without worrying about damage caused by manual negligence.
8. Special setting structure, with cutting knife and cutting height. Make stroke adjustment simple and accurate.
9. Equipped with double oil cylinder, super power and low noise.
10. Automatic feeding device can be configured to improve the production efficiency of industrial products.
Product Use:
The machine is suitable for all kinds of blister, sponge, EPE, pearl cotton, carpets, non-woven fabrics, automotive interior, gloves, bags, puzzles, EVA, PAC, PVS, plastic floor, car floor mat forming, car cushion, soccer, sand paper, polishing wheel, the various pads, uppers, soles, leather, rubber, chemical fiber, paper, canvas, nylon, non-woven fabrics, cotton fabrics, and various non-metallic materials of layer or one multilayer sheet and coil using the cutting die cutting to reach the goal of forming.
Pay attention to the matters:
1. It is suggested to replace the hydraulic oil once within one year of using the new machine, please choose a big brand;
2. When the machine is running, it is forbidden to put both hands into the cutting area;
3. It is strictly prohibited to use the machine under excessive load.
4. Do not use the machine under overpressure.
;The safety protection device of the machine shall not be removed.
Technical parameter:
Model ZT-J-350 ZT-J-400 ZT-J-500 ZT-J-600 ZT-J-800 ZT-J-1000 ZT-J-1500
Maximum cutting force 350 400 500 600 800 1000 1500
Distance from upperpressing board to worktable 50-190 50-190 50-190 50-190 50-190 50-190 50-190
Cuttingarea 1250×600
1600×600
1250×600
1600×600
1250×800
1600×800
1250×900
1600×900
1250×900
1600×900
1600×900 1600×1000
Main motor power 2.2 3 4 5.5 7.5 7.5 11
Machine weight(approximate) 2000
2300
2500
2700
3200
3500
3800
4200
5400
5800
700 8500

Machine specific parameters,configuration,price,preferential information,please call to consult!Special specifications can be customized according to the requirements.
